WMAシリーズ

MEMS・ピエゾ・EO-モジュレーター向け高電圧・高周波・低ノイズアンプ ファルコシステムWMAシリーズは様々な仕様により選択できる高電圧アンプです。

The Falco Systems WMA series consists of a range of high voltage laboratory amplifiers with industry-leading specifications. We have high voltage amplifiers available with extremely wide bandwidth (DC to 5MHz) and high speed slew rate (2000V/us), but also with ultra low noise (50 microVolt rms in DC – 100kHz). These specifications make the different amplifiers of the range an excellent choice for use with MEMS devices, EO-modulators, PZT positioning systems, beam steering components, ultrasonics, and in many other applications.

高速位相反転器 - バッファー WMA-IB-HS

The WMA-IB-HS can be used to double the output voltage of two high voltage amplifiers by driving them in bridge mode, or as high impedance input buffer while maintaining precision, high speed and low noise. Because of its high bandwidth, the WMA-IB-HS model is ideal for the Falco Systems WMA-100 or WMA-300 amplifiers. It can also be used with all other Falco Systems HV amplifiers, or even with high voltage amplifiers of another brand.
Specifications:
  • One BNC input, one BNC buffered output, and one BNC phase inverted output
  • High speed: DC - 20MHz @ -3dB full power bandwidth and -10V to +10V maximum output voltage
  • Switchable 50 Ohm /100 kOhm input: buffer low-current signals to drive high-speed 50 Ohm amplifier inputs
  • Power supply adapter accomodates both 230V/50Hz and 115V/60Hz mains voltage
  • Lead-free, environment-friendly construction
In bridge mode, the phase inverter - buffer can double the maximum output voltage available to drive a load such as a piezo actuator or electro-optical (EO-) modulator. The arrangement is show in the photograph and the schematic above. The phase inverter - buffer drives the two HV amplifiers with the same signal but opposite polarity. The load is connected between the two amplifier outputs, instead of the usual connection of the load between the output of an amplifier and ground.

WMA-IB-LN 超低ノイズ位相インバーター - バッファー

The WMA-IB-LN can be used to double the output voltage of two high voltage amplifiers by driving them in bridge mode, or as high impedance input buffer while maintaining precision and ultra-low noise. The WMA-IB-LN model has been designed specifically for the Falco Systems WMA-200 high voltage amplifier. Two WMA-200 amplifiers combined with one WMA-IB-LN provide unprecedented noise performance and output voltage range.
Specifications:
  • Ultra-low noise: with 2 WMA-200 amps, the rms output noise is ~130uVrms, with 700Vpp output voltage range!
  • Output voltage: -10V to +10V differential maximum
  • BNC input, differential input, differential buffered output and differential phase inverted output
  • Lead-free, environment-friendly construction
In bridge mode, the phase inverter - buffer can double the maximum output voltage available to drive a load such as a piezo actuator or electro-optical (EO-) modulator. The arrangement is show in the photograph and the schematic above. The phase inverter - buffer drives the two HV amplifiers with the same signal but opposite polarity. The load is connected between the two amplifier outputs, instead of the usual connection of the load between the output of an amplifier and ground.

超低ノイズ高電圧アンプ WMA-200

The Falco Systems WMA-200 model is a high quality, high voltage, linear laboratory amplifier optimized for experiments requiring world-class, ultra-low output noise. The excellent noise performance, combined with the wide bandwidth and large voltage range make this amplifier the preferred choice for the most demanding precision positioning systems. The amplifier will routinely enable sub-atomic positioning resolution with piezo positioning systems and MEMS devices. Two WMA-200 amplifiers and a WMA-IB-LN phase inverter - buffer can be used to double the output voltage.
Specifications:
  • Ultra-low output noise: ~50uVrms with DC – 100kHz large signal bandwidth; ~20uVrms with DC – 500Hz using the supplied load capacitor box
  • High voltage: 20.0x precision amplification up to +175V and -175V output voltage with respect to ground
  • hort-circuit protected output with 275mA output current capability
  • No overshoot with capacitive loads: bandwidth changes automatically to ensure stability
  • 2 inputs: a standard BNC connector, and a differential connector to reject interference (mating connector supplied)
  • BNC monitor out connector provides 1:100 replica of the output signal
  • Available in a 230V/50Hz and 115V/60Hz version
  • Lead-free, environment-friendly construction

WMA-200 frequency response for different capacitive loads

WMA-200 rms noise level for different capacitive loads

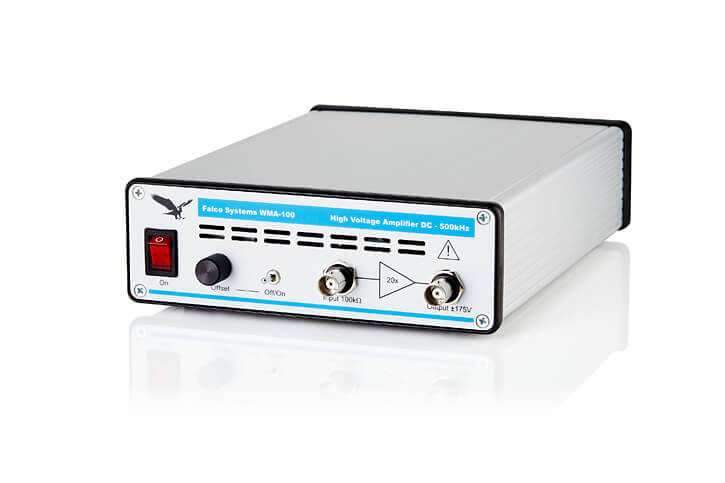

コンパクトタイプオールラウンド高電圧アンプ WMA-100A

The WMA-100A model is our cost-effective, compact, general purpose high voltage amplifier. With its high quality and small form factor, it is the ideal choice for any experiment that requires an all-round, reliable high voltage amplifier. It can also be used as a stand-alone low noise high voltage power supply. Two WMA-100A amplifiers and a WMA-IB-HS phase inverter - buffer can be used to double the output voltage.
Specifications:
  • 20x amplification up to +170V and -170V output voltage (with respect to ground)
  • DC to 500kHz at (-3dB) large signal bandwidth and 100 mA output current
  • Low noise at ~840 uVrms in DC - 10MHz; even lower when capacitive loads are driven
  • No overshoot with capacitive loads; bandwidth changes automatically to ensure stability
  • Short-circuit protected output
  • Adjustable DC offset control knob
  • Available in a 230V/50Hz and 115V/60Hz version
  • Lead-free, environment-friendly construction

WMA-100A frequency response for different capacitive loads

WMA-100A rms noise level for different capacitive loads

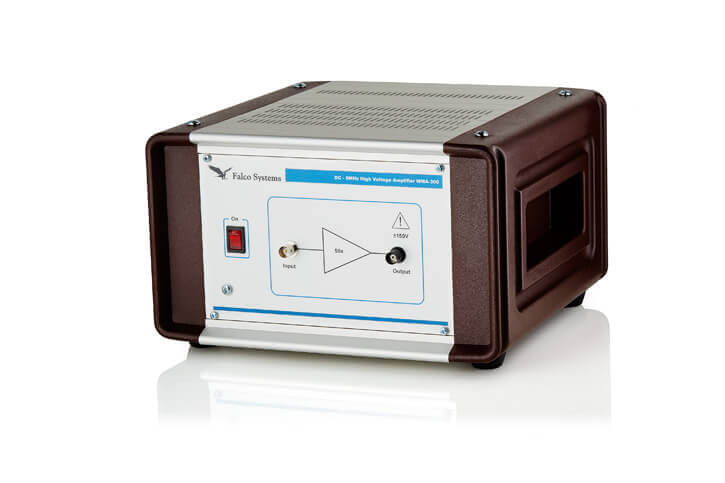

高速高電圧増幅器 WMA-300

The WMA-300 is a high voltage, wide bandwidth laboratory amplifier. Its high output voltage, current and wide bandwidth have been designed to serve the needs of a wide variety of high-tech experiments. The WMA-300 can be used for MEMS actuation, EO-modulators, PZT (piezo) positioners, ultrasonics, and many other applications. Two WMA-300 amplifiers and a WMA-IB-HS phase inverter - buffer can be used to double the output voltage.
Specifications:
  • High voltage 50x amplification up to +150V and -150V with respect to ground
  • DC to 5MHz large signal bandwidth and 300mA output current, ideal for electrostatic MEMS and piezo actuators
  • High speed 2000V/us slew rate
  • Continuous short-circuit protection
  • No overshoot with capacitive loads and perfectly stable
  • 50 Ohms input impedance with protection
  • 50 Ohms output impedance with fast current limit
  • 230V/50Hz mains power
  • Lead-free, environment-friendly construction

WMA-300 full output swing 300Vpp frequency response

WMA-300 full output swing 300Vpp 100kHz step response

低ノイズ高精度アンプ WMA-280

The WMA-280 is a high voltage, low noise precision amplifier. Its specifications have been designed to serve the needs of a wide variety of high-tech experiments. The WMA-280 can be used for MEMS actuation, EO-modulators, as high voltage driver for PZT (piezo) positioners, ultrasonics, and many other applications. Its output noise is only 300 microVolt rms.

Specifications:
  • High voltage 20.0x amplification up to +150V and -150V with respect to ground
  • DC to 100kHz full-power bandwidth (-3dB) and 300mA output current
  • Low output noise: 300 microVolt rms
  • High precision: <0.1% amplification error
  • Continuous short-circuit protection
  • Stable with capacitive and resistive loads
  • 1kOhm 0.1% input impedance with protection
  • Differential and normal BNC input
  • <0.1Ohms output impedance with fast current limit
  • 230V/50Hz mains power
  • Lead-free, environment-friendly construction

高速高電圧増幅器 WMA-320

Specifications:
  • High voltage 50x amplification up to +100V and -100V with respect to ground
  • DC to 5MHz large signal bandwidth and 300mA output current, ideal for electrostatic MEMS and PZT (piezo) actuators
  • High speed 1300V/us slew rate
  • Continuous short-circuit protection
  • No overshoot with capacitive loads and perfectly stable
  • 50 Ohms input impedance with protection
  • 50 Ohms output impedance with fast current limit
  • 230V/50Hz mains power
  • Lead-free, environment-friendly construction

バッテリ駆動の高電圧アンプ

Falco Systems provides a range of battery powered high voltage amplifiers, which can be used e.g. with floating power supplies or in a Faraday cage. They also serve as excellent cost-effective small stand-alone amplifiers.
These tiny high voltage amplifiers run from a low voltage 24V DC power supply or battery and provide a bipolar high voltage at their output. The WMA-02 delivers -175V to +175V, the WMA-01 -125V to +125V, while the WMA-005 covers the low voltage end of the range, with -75V to +75V output voltage.

低電圧DC /高電圧アンプ WMA-02及びWMA-02LF

The Falco Systems WMA-02 is a high voltage amplifier that runs from an 24 - 30V DC power supply and can be battery powered if required, e.g. for use in a Faraday cage. Its internal high voltage generator is inductor-free and hence does not spread magnetic interference in sensitive experimental setups. The output noise is impressively low at 4mVrms. For extremely low noise applications where bandwidth is not an issue, a dedicated WMA-02LF version is available that contains an output low pass filter capacitor which reduces the bandwidth to 50Hz, but makes the noise drop to below 0.2mVrms. This bandwidth-limited amplifier is ideal for MEMS or piezo positioning with manual voltage adjustment.
Specifications:
  • High voltage 20x amplification up to +175V and -175V with respect to ground
  • DC to 13kHz full-power bandwidth (-3dB) WMA-02
  • DC to 50Hz full-power bandwidth (-3dB) WMA-02LF, built to order
  • Low output noise: <4mVrms for the WMA-02 and <0.2mVrms for the WMA-02LF typical
  • Continuous short-circuit protection
  • No overshoot with capacitive loads and perfectly stable
  • 100kOhm input impedance
  • 50kOhm output impedance
  • 50x100x26mm size
  • 24V – 30V single DC power supply, 120mA

低電圧DC /高電圧アンプ WMA-01及びWMA-01LF

The Falco Systems WMA-01 is a high voltage amplifier that runs from an 24 - 30V DC power supply and can be battery powered if required, e.g. for use in a Faraday cage. Its internal high voltage generator is inductor-free and hence does not spread magnetic interference in sensitive experimental setups. The output noise is impressively low at 3mVrms. For extremely low noise applications where bandwidth is not an issue, a dedicated WMA-01LF version is available that contains an output low pass filter capacitor which reduces the bandwidth to 50Hz, but makes the noise drop to below 0.1mVrms. This bandwidth-limited amplifier is ideal for MEMS or piezo positioning with manual voltage adjustment.
Specifications:
  • High voltage 20x amplification up to +125V and -125V with respect to ground
  • DC to 20kHz full-power bandwidth (-3dB) WMA-01
  • DC to 50Hz full-power bandwidth (-3dB) WMA-01LF, built to order
  • Low output noise: <3mVrms for the WMA-01 and <0.1mVrms for the WMA-01LF typical
  • Continuous short-circuit protection
  • No overshoot with capacitive loads and perfectly stable
  • 100kOhm input impedance
  • 50kOhm output impedance
  • 50x100x26mm size
  • 24V – 30V single DC power supply, 120mA

低電圧DC /高電圧アンプ WMA-005及びWMA-05LF

The Falco Systems WMA-005 is a high voltage amplifier that runs from an 24 - 30V DC power supply and can be battery powered if required, e.g. for use in a Faraday cage. Its internal high voltage generator is inductor-free and hence does not spread magnetic interference in sensitive experimental setups. The output noise is impressively low at 3mVrms. For extremely low noise applications where bandwidth is not an issue, a dedicated WMA-005LF version is available that contains an output low pass filter capacitor which reduces the bandwidth to 50Hz, but makes the noise drop to below 0.1mVrms. This bandwidth-limited amplifier is ideal for MEMS or piezo positioning with manual voltage adjustment.
Specifications:
  • High voltage 20x amplification up to +75V and -75V with respect to ground
  • DC to 20kHz full-power bandwidth (-3dB) WMA-005
  • DC to 50Hz full-power bandwidth (-3dB) WMA-005LF
  • Low output noise: <3mVrms for the WMA-005 and <0.1mVrms for the WMA-005LF typical
  • Continuous short-circuit protection
  • No overshoot with capacitive loads and perfectly stable
  • 100kOhm input impedance
  • 50kOhm output impedance
  • 50x100x26mm size
  • 24V – 30V single DC power supply, 120mA

WMA-02,WMA-01,WMA-005用電源

Specifications:
  • 24V/3A, 230V/50Hz, 72W power supply
  • WMA series BNC interfacing connector cable supplied
  • One power supply can provide power for up to 10 amplifiers
